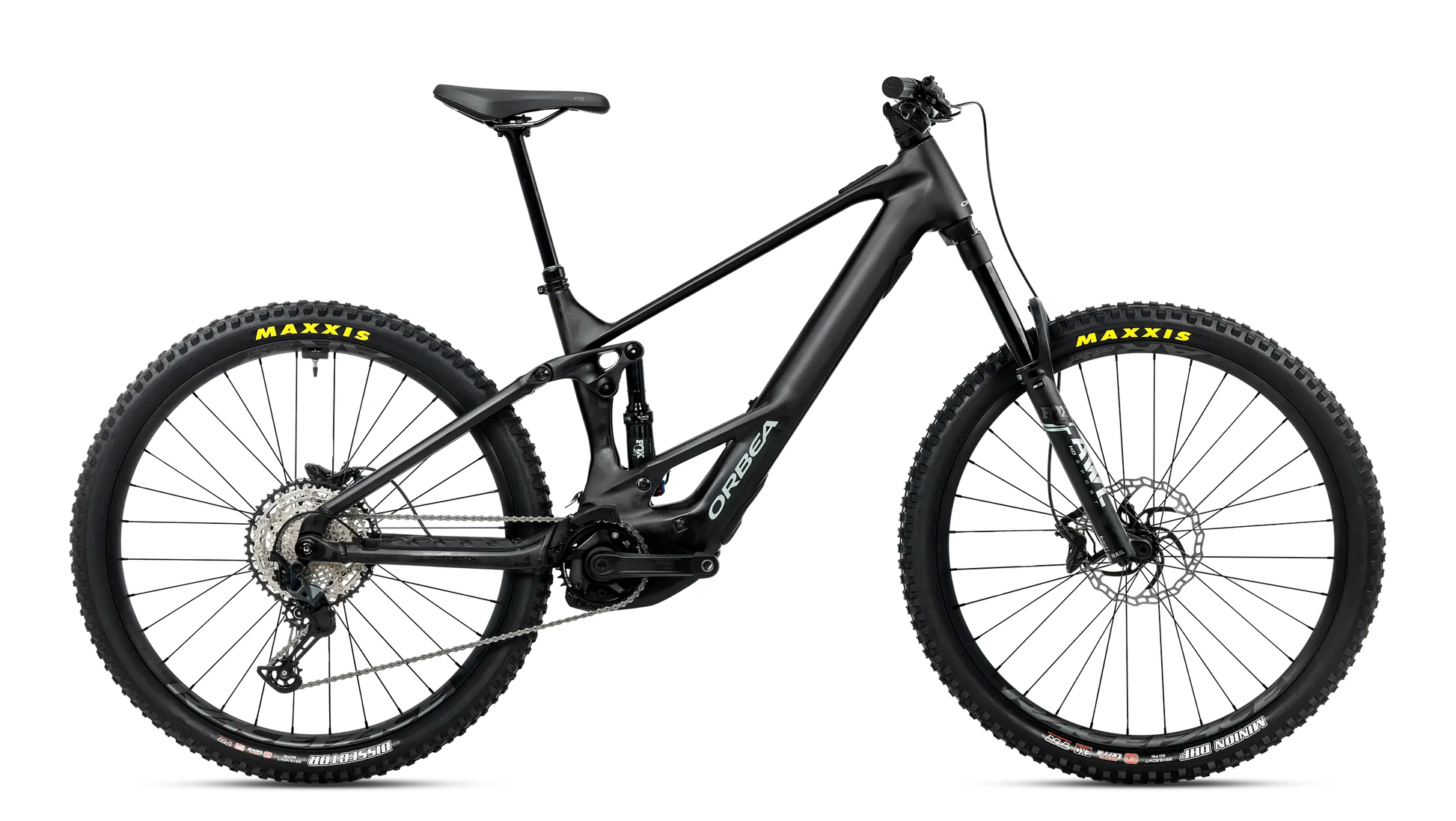

Orbea Wild H20
Orbea Wild H20
Couldn't load pickup availability
Standard configuration
Frameset
Fork
Fox 36 Float AWL HD Sport 150 Rail 2.0 QR15x110
Frame
Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148
Shock
Fox Float Performance Trunion 2-Pos Evol LV custom tune 205x57.5mm
Headset
Alloy 1-1/2", Black Oxidated Bearing
Ebike
Motor
Bosch Performance Line CX BDU3843
Battery
Bosch Powertube 750Wh Horizontal BBP3775
Range Extender
N/A
Display
Bosch System Controller BRC3100
Charger
Bosch Charger 4A (110V) BPC3410
Remote
Bosch Mini Remote BRC3300
Drivetrain
Chainring
e*thirteen e*spec Direct Mount 34T Boost
Crank
e*thirteen Helix Core
Shifters
Shimano Deore M6100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Rear derailleur
Shimano SLX M7100 SGS Shadow Plus
Chain
Shimano M6100
Chainguide
e*thirteen Plus Bosch CX Gen4 CL 55 32-36t
Cockpit
Handlebar
OC Mountain Control MC30, Rise20, Width 800
Stem
OC Mountain Control MC20, 0º
Computer Mount
OC Computer Mount CM-05, Garmin/Sigma
Brakes
Brakes
Shimano M6120 Hydraulic Disc
Rotors
Galfer Wave Rotors 203mm front / 203mm rear
Brakes Configuration
N/A
Wheels
Wheels
Race Face AR 30c Tubeless Ready
Tyres
Maxxis Dissector 2.40" 120 TPI 3C MaxxTerra Exo+ TLR
Components
Saddle
Selle Royal Vivo Sport Men 145 x 269mm
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever
Shimano SL-MT500 I-Spec EV
Grips
OC Lock On
